Modula Anti-Fire
Key advantages of the system:
- Innovative principle of operation: The system suppresses fire by acting on the chemical chain reaction in the flame using a potassium-based aerosol, rather than just reducing oxygen levels or cooling
- High extinguishing efficiency: With the correct aerosol density calculation, the system provides exceptional performance in the immediate vicinity of the fire source
- Safe for humans and the environment: The extinguishing agent used is completely non-toxic
- Property preservation: Ultrafine particles (less than 10 micrometers in diameter) stay in the air longer and leave significantly less residue compared to other fire extinguishing agents
- Compliance with international standards: The system and all its components are fully certified and comply with global regulations such as ISO 15779-2012, EN 15276, NFPA 2017, and UL 2775

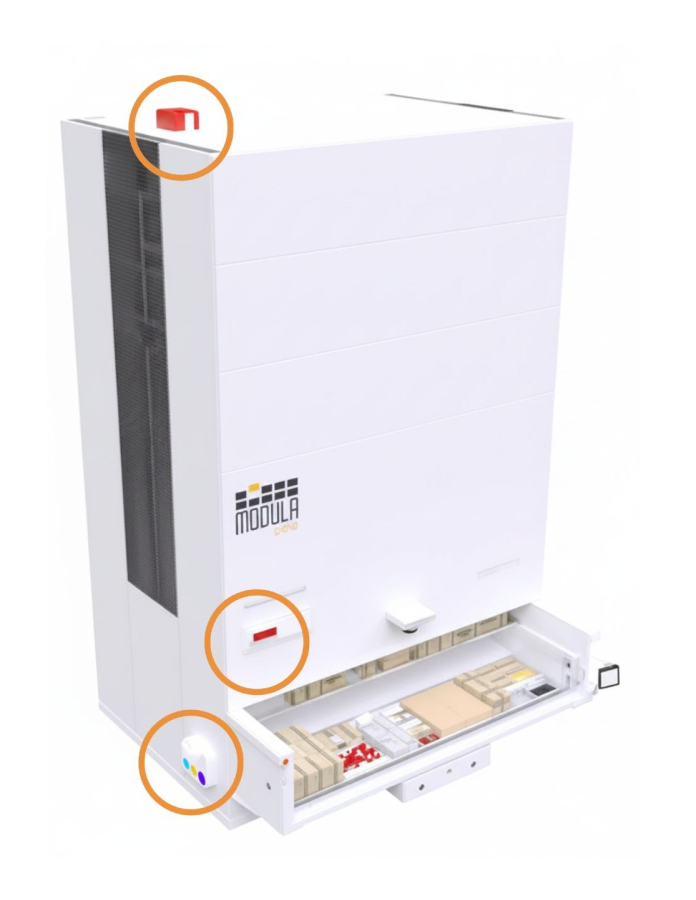

- Comprehensive reliability: The system includes high-precision components, including photoelectric smoke detectors, aerosol generators, and uninterruptible power supplies (UPS) for guaranteed operation in any conditions
Modula Fire-Fighting operates by acting on the free radicals of the flame, allowing it to effectively extinguish fire without the need to reduce the oxygen level in the protected area. All system components are fully certified in accordance with international safety regulations.
| Characteristic | Description |
|---|---|
| Type of extinguishing agent | Condensed potassium-based aerosol |
| Extinguishing mechanism | Inhibition (interruption) of the chemical chain reaction in the flame |
| Size of solid aerosol particles | Ultra-fine particles with a diameter of less than 10 micrometers |
| Toxicity | Completely non-toxic |
| Main system components | Aerosol generator, photoelectric smoke detector, uninterruptible power supply (UPS), audible-visual information panel, manual control buttons |
| Number of generators | Depends on the automated warehouse (VLM) model |
| Residue after use | Minimal (particles remain suspended in the air for a long time and leave much less residue than other extinguishing agents) |
| Compliance with standards | ISO 15779-2012, EN 15276 (parts 1 and 2), NFPA 2017, UL 2775, CE marking |
Modula is a visionary company, with the digitalization of processes as one of its core strengths. Over the years, it has opted for 100% Modula production according to a robust strategy of automation of production lines and insourcing of manufacturing and process know-how. This has made the company stronger in terms of product quality, market competitiveness, and process knowledge.
Modula has chosen to focus on the vertical production of a single type of product and has always dedicated significant resources to research and development. Consequently, it has developed a wide range of models and configurations at its warehouses. Foresight in investment has resulted in the dedication of over €150 million to state-of-the-art production facilities in Italy, the United States, and China.
Production Process
Everything happens automatically. Starting with the cutting of panels directly from rolls of sheet steel, production moves swiftly through to finished components. The flow of single parts, kits, or batches depends on specific orders. Production is managed just-in-time and monitored step-by-step by the proprietary MPS (Modula Production System) software.
This software manages requirements linked to sales orders and provides full control over the progress of each order via an integrated barcode reader system. MPS communicates with MRP and ERP systems for the automatic scheduling of work requests. This interconnection via robots and software allows for reduced costs, increased productivity, and real-time control.
Why Modula?
-
30+ years of experience in the development of automatic storage solutions.
-
Work completed for over 20,000 clients and major brands across various sectors.
-
Belief in the vertical project since the ’80s, with constant product improvement.
-
Profound software knowledge, enabling integrated and customized solutions.
-
Collaboration with numerous partners for integrations: from anthropomorphic robots to AMRs, AGVs, and conveyors.
